5 feet Domestic fence

Material : 5 feet / 1.5 meters height Fence

Intermediate post

48OD CHS (48mm OD Circular Hollow Section), 2.0mm thickness. 6.5ft full length, 1.5ft grouted, 5ft above ground. 10feet c/c. Hot dip galvanized to 90 microns

Strain/corner post

48OD CHS (48mm OD Circular Hollow Section), 2.0mm thickness. 6.5ft full length, 1.5ft grouted, 5ft above ground. Only 4 corners + turn nodes. Hot dip galvanized to 90 microns

Post caps

48ID female top. 1.6mm thickness. Pre-galvanized G.I profile

Strut post

33OD CHS (33mm OD Circular Hollow Section), 2.0mm thickness. 8ft full length, 1.4ft inclined grouted @45⁰, 6.6ft inclined to strain post. Hot dip galvanized to 90 microns

Strut post caps

33ID female top. 2.0mm thickness with welded lug plate. Hot dip galvanized to 90 microns

Chain link mesh

Chain link : 2.5”, 2.5mm wire diameter. 275GSM, 5ft height

 Tension wire

4mm high tensile wire (HT) with 275 GSM

Twist ties

Twist ties: 4mm wire dia., Pre-shaped fence ties, 275 GSM)

Gate

48OD frame, 2.0mm thickness, 5ft span, 5ft height, swing type, single leaf, chain link mesh infill(as required), with heavy-duty steel gate posts, MS hinges(welded or bolted) and standard latch with padlock provision and applicable material.

Tension bars

32x5mm bar, 5ft height, 3 XM10 apertures, hot dip galvanized to 90 microns

Center bands

25x3mm bar, 250mm pre-stressed profile, hot dip galvanized to 90 microns

Corner bands

25x3mm bar, 300mm pre-stressed profile, hot dip galvanized to 90 microns

Eye bolt

8mm, 3” length, special purposed with eye, stainless steel SS304

U clips

5mm (stainless steel SS304)

O fasteners

M12 bolt ( 40mm special fastener for tightening, stainless steel SS304 + nut)

Fastener

M10 bolt (40mm fastener, stainless steel)

1. Material Quality & Component Integrity: (4/7)

• While we utilize the absolute highest-grade hot-dip galvanized iron (GI) and marine-grade SS304 stainless steel fasteners, we intentionally optimize the wire diameter and cell size to match residential and agricultural budgets. By replacing failure-prone local materials with standardized GI and stainless steel U-clips, this system delivers an uncompromising baseline quality that easily outlasts standard market alternatives.

2. Operational Lifespan & Weather Defense: (4/7)

• In terms of chemical rust resistance, our premium 275 GSM galvanization is top-tier. However, we have engineered this system using heavy-wall round hollow section (RHS) poles rather than traditional structural L-angles. This strategic design choice perfectly matches the exact structural needs of a domestic perimeter—giving you a 20+ year environmental lifespan while eliminating the excessive weight and high material costs of industrial-grade iron angles.

3. Perimeter Security & Containment Profile: (4/7)

• Standing at a finished height of 5 feet above ground level, this system provides an excellent, highly secure containment profile for residential properties, orchards, and livestock borders. It acts as a formidable physical deterrent against boundary encroachment and stray animals, delivering optimal domestic protection without the claustrophobic look of a solid masonry wall.

4. Economy & Total Cost-per-Meter Value: (5/7)

• This is where the CHAKRA 5 feet Domestic Fence system truly dominates the search market. By engineering the ideal intersection of high-tensile wire mesh and weight-optimized round support poles, we have created a premium boundary that fits the average property owner's buying power. It offers an unbeatable cost-effective fencing solution for large-scale land development, maximizing your security footprint per square foot.

5. Landscape Aesthetics & Curb Appeal: (4/7)

• The clean, symmetrical geometry of our woven chain link mesh combined with sleek round posts provides a beautiful, modern perimeter that enhances your property's curb appeal. The 5-foot profile keeps your estate looking open, bright, and welcoming—allowing natural light and airflow to pass through your landscaping while clearly securing your legal property lines.

CHAKRA 5 Feet Domestic Fence – Questions & Answers

Understanding the 5 Feet Domestic Fence

1. What is a 5 feet domestic fence?

A 5 feet domestic fence is a chain link boundary fencing system with approximately 5 feet of finished height above ground. It is commonly used around homes, farmhouses, agricultural properties, orchards and open plots.

2. Why choose a 5 feet fence?

Choosing the right fence height depends on what you are trying to protect and how much you want to spend.

A 4 feet fence can be suitable for gardens and light-duty boundary definition, while a 6 feet fence can provide greater height where additional screening or security is required.

A 5 feet domestic fence sits between these requirements. It provides additional height over a garden fence while avoiding the additional material and visual presence of a taller fence.

For many residential and agricultural properties, this makes 5 feet chain link fencing a practical middle-ground option.

3. Where can a 5 feet domestic fence be used?

The C5DF is suitable for a wide range of domestic, agricultural and property-boundary applications, including:

• Residential properties
• Homes and villas
• Farmhouses
• Agricultural land
• Orchards and plantations
• Gardens and landscaping
• Open plots
• Livestock areas

The suitability for livestock depends on the animal, mesh configuration and installation. Specific applications should be designed according to the animal's size, behavior and ability to exert pressure on the fence.

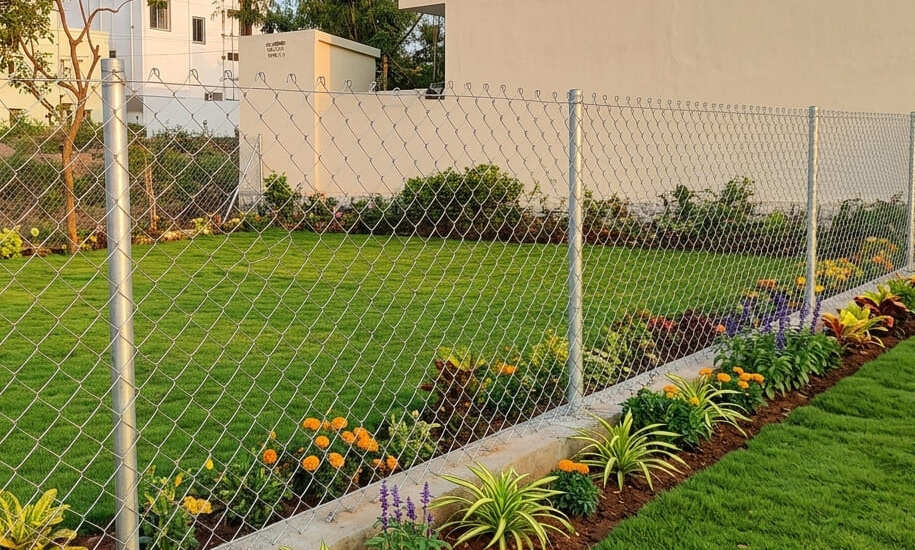

4. Is a 5 feet fence suitable for a house?

Yes. A 5 feet chain link fence can be used for residential boundaries, compounds, open plots, farmhouses and similar properties where a 5-foot chain link boundary is appropriate.

5. Is a 5 feet fence better than a 4 feet fence?

Not necessarily. The correct height depends on the application.

A 4 feet fence can be suitable for gardens and light-duty boundaries, while a 5 feet fence provides greater height and boundary presence.

6. Is a 5 feet fence better than a 6 feet fence?

Again, it depends on the requirement.

A 6 feet fence provides additional height, while a 5 feet fence can offer a practical balance between coverage, visibility and material cost.

Mesh and Wire Specifications

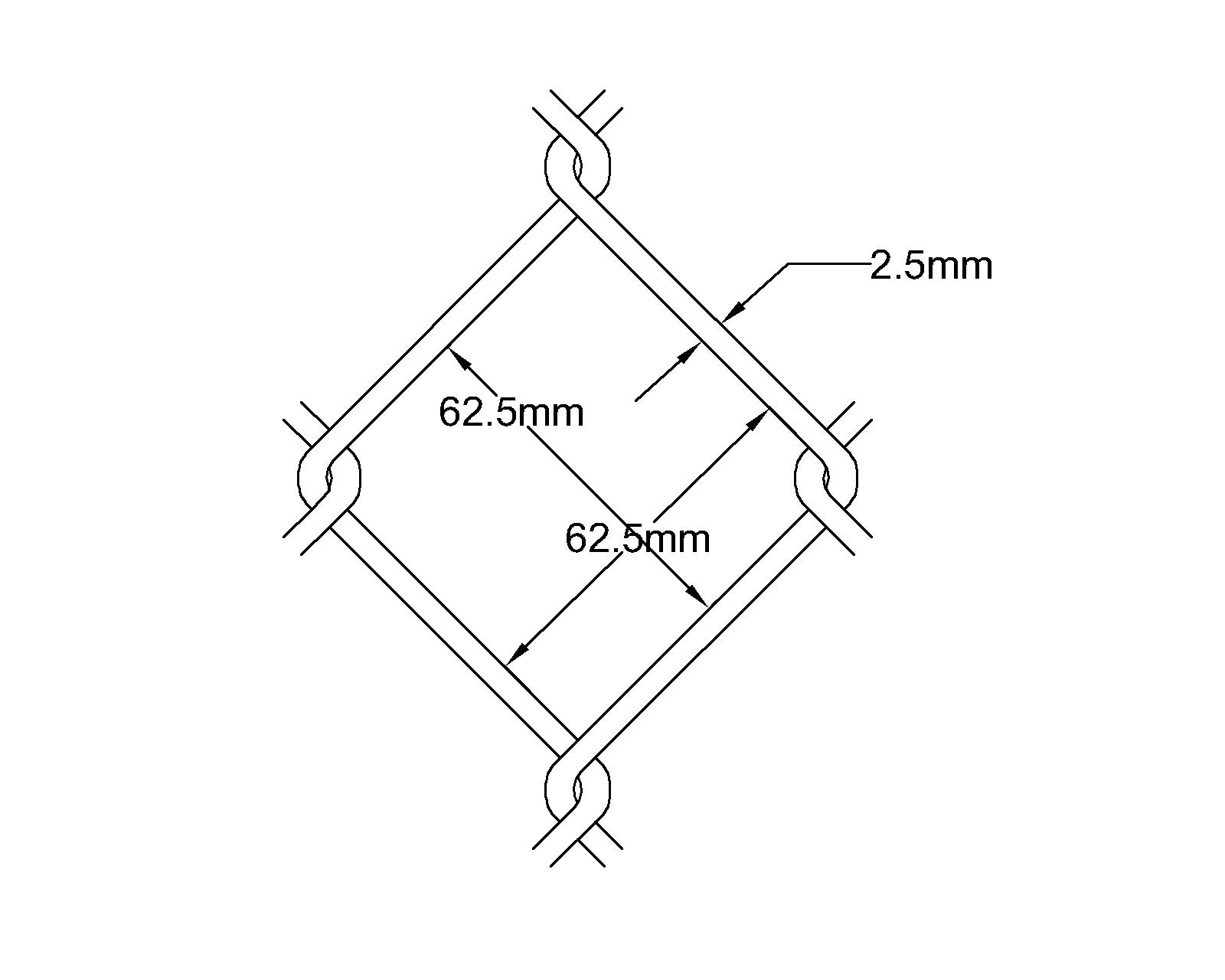

7. What is the mesh size of the CHAKRA 5 feet domestic fence?

The standard C5DF uses a 2.5-inch / 63.5 mm chain link mesh opening.

8. What wire is used in the C5DF?

The standard chain link mesh uses 2.5 mm / approximately 12 gauge wire.

9. Can I change the mesh size?

Custom mesh openings can be considered depending on the project requirement.

Buyers should specify the required mesh opening and wire diameter before ordering.

10. What types of chain link fence coatings are available?

We offer three coating finishes depending on budget, application and environmental conditions:

• 100 GSM Galvanized: A zinc protective layer designed for standard environmental conditions.
• 275 GSM Galvanized: A heavier zinc coating intended to provide greater corrosion protection, particularly in demanding environments.
• PVC-Coated Finish: Adds a weather-resistant polymer layer over galvanized steel and is available in multiple colours.

The appropriate coating should be selected according to the installation environment and project requirements.

11. What does 275 GSM mean?

GSM means grams per square meter.

In galvanized steel products, the GSM figure indicates the approximate mass of zinc coating over a defined surface area.

The C5DF uses 275 GSM galvanized chain link mesh.

A heavier zinc coating can provide better protection against corrosion than a lighter coating, although actual service life also depends on the environment, installation, handling, exposure and maintenance.

Rain, humidity, soil conditions, pollution, coastal exposure and physical damage can all influence corrosion.

For this reason, the galvanization specification should be considered together with wire diameter, mesh opening and structural design rather than looking only at the price.

Posts and Structural Components

12. What size are the C5DF posts?

The standard intermediate and strain/corner posts use 48 mm OD circular hollow section steel with 2 mm thickness.

13. Are the fence support poles galvanized or painted?

The standard C5DF configuration uses galvanized structural posts.

The premium ranges feature a heavy 90-micron hot-dip galvanized coating. Galvanized fencing posts provide greater corrosion resistance than standard painted poles.

Painted structural poles can also be considered where a lower initial cost is required.

14. Do you supply chain link fence with steel angle posts instead of round poles?

Yes, both options are available.

The standard C5DF uses 48 mm OD round hollow section poles. For applications requiring heavier steel angle posts, a dedicated heavy-duty angle-post configuration can be considered.

15. Why are the posts longer than five feet?

Because the fence needs structural anchoring below ground.

A five-foot fence is not supported by placing a five-foot post on top of the ground. The supporting post extends below the finished ground level and is grouted into position.

This buried portion transfers loads into the ground and helps maintain the alignment of the fence.

16. How far apart are the fence posts?

The standard C5DF arrangement uses intermediate posts at approximately 10 feet center-to-center.

The exact layout can change depending on corners, turns, gates, terrain and project requirements.

17. Can I have the posts at 8 feet center-to-center?

Yes, post spacing can be adjusted according to the project requirement.

An 8-foot center-to-center arrangement would increase the number of posts and may change the material requirement and project cost. The appropriate spacing should be determined according to the site conditions, fence length and required structural configuration.

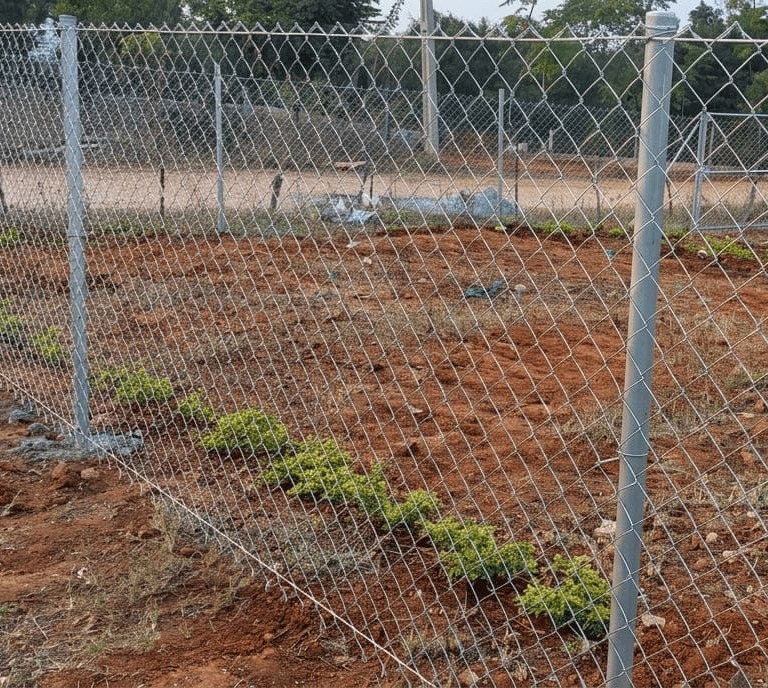

18. How deep are the fence posts installed?

The standard C5DF intermediate post is approximately 6.5 feet long.

Approximately 1.5 feet is grouted into the ground, leaving approximately 5 feet of fence above ground level.

Actual installation conditions can vary depending on:

• Soil condition
• Ground level
• Terrain
• Boundary design
• Wind exposure
• Fence length
• Project requirements

Correct installation is essential to obtain the intended performance from the fencing system.

Tension and Complete Fence System

19. Does the fence use tension wire?

Yes. The standard C5DF uses 4 mm high-tensile tension wire with 275 GSM galvanization.

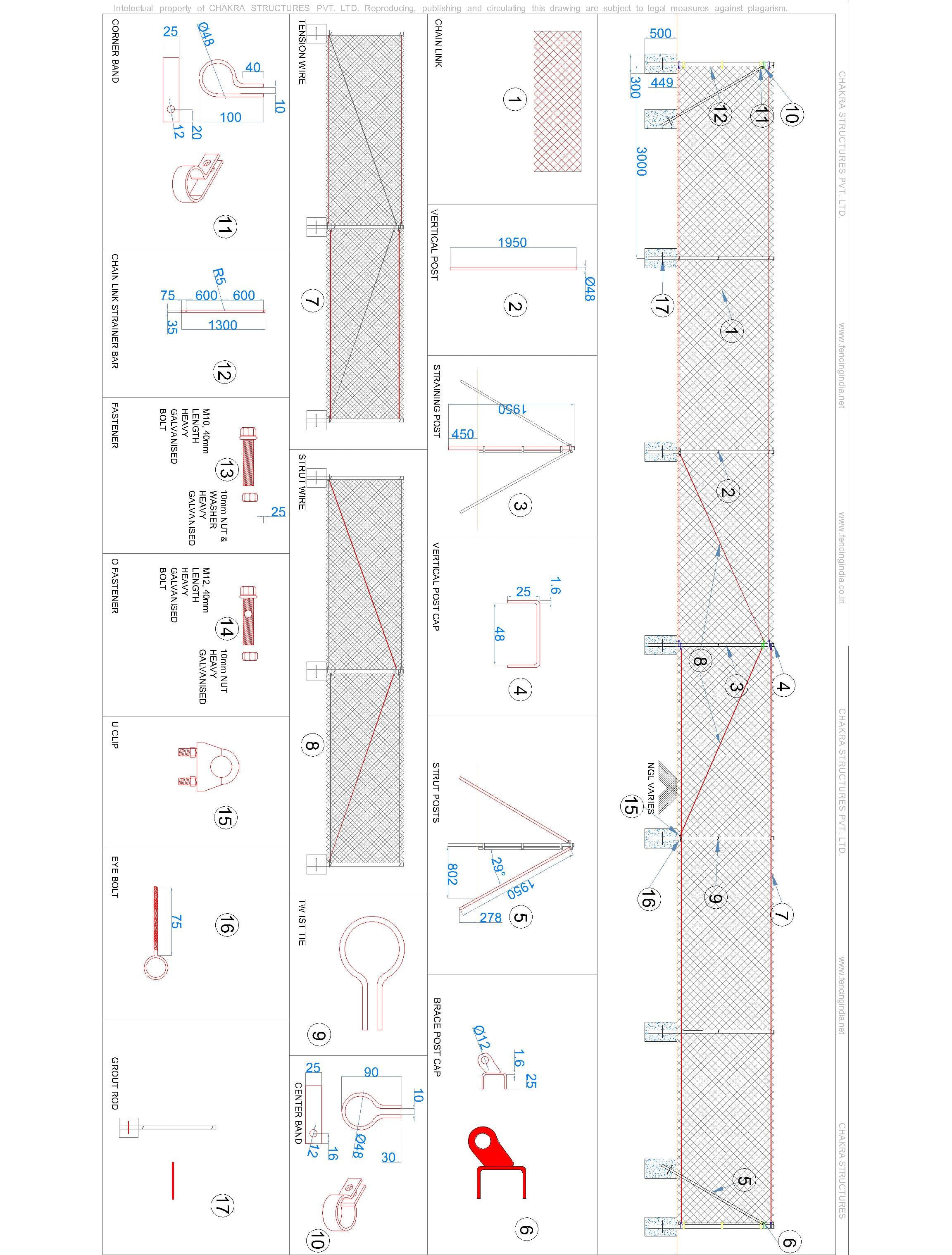

20. What components are included in a complete fencing system?

A complete fencing system consists of more than the chain link mesh alone.

The supporting system can include:

Mesh + Posts + Tension Wire + Strain Posts + Struts + Tension Bars + Bands + Fasteners

The C5DF specification includes:

• 5 feet finished fence height
• 2.5-inch chain link mesh
• 2.5 mm / 12 gauge mesh wire
• 275 GSM galvanized mesh
• 4 mm high-tensile tension wire
• 275 GSM tension wire
• 48 mm OD round galvanized posts
• 2 mm post thickness
• Approximately 10 feet post spacing
• Galvanized strain and corner posts
• 33 mm OD galvanized strut posts
• 32 × 5 mm tension bars
• 25 × 3 mm center and corner bands
• SS304 stainless steel fastening components
• Optional gate arrangement

21. Why should I buy a complete fencing system instead of mesh alone?

A chain link mesh roll is only one part of a functioning fence.

A properly constructed perimeter requires suitable supporting posts, tensioning components, strain arrangements, fasteners and other structural components.

If the mesh is simply attached to weak or widely spaced supports, the finished fence may not have the same appearance or structural performance as a properly constructed system.

A complete system also makes it easier to determine the actual project cost because the major components are considered together.

22. Can I buy chain link mesh without the posts?

Yes.

Chain link mesh can be supplied separately for customers who already have suitable posts or an existing support structure.

23. Can I remove the installation accessories from my quote to lower the price?

The tensioning and fixing components are important parts of the fencing system.

Components such as tension wires, tension bars, bands and fixing components help maintain the alignment and tension of the mesh. Omitting structural components can affect the finished fence.

The quotation should therefore be prepared according to the complete fencing requirement rather than treating these components as unnecessary accessories.

Gates, Customization and Installation

24. Can I add a gate to the 5 feet domestic fence?

Yes.

The standard C5DF configuration includes provision for a 5 feet high, 5 feet wide, single-leaf swing gate.

Gate dimensions and configurations can be customized according to the project.

25. Can the C5DF be customized?

Yes.

Depending on the project, customization can include:

• Mesh opening
• Wire diameter
• Fence height
• Post configuration
• Gate dimensions
• Gate arrangement
• Layout
• Coating specification
• Project-specific quantities

26. How long does a standard residential chain link fence installation take?

The installation timeline depends on terrain and soil conditions.

A standard residential perimeter run of approximately 150 to 200 linear feet (45 to 60 meters) typically takes 1 to 3 days to complete.

Actual installation time can vary according to the site and project configuration.

Security, Durability and Maintenance

27. Is a 5 feet chain link fence secure?

A chain link fence provides a physical barrier and can be an effective chain link perimeter fencing for many domestic and agricultural applications.

However, a 5 feet domestic fence should not be confused with a high-security fence.

The level of security provided depends on:

• Fence height
• Mesh wire diameter
• Mesh opening
• Post design
• Tension system
• Installation quality
• Gate design
• Terrain
• The type of threat the fence is intended to address

For ordinary residential and property-boundary applications, a properly installed 5 feet chain link fence can provide useful physical containment and boundary control.

Where high-security protection is required, a taller or specially engineered fencing system may be more appropriate.

28. How long does a galvanized 5 feet fence last?

The C5DF uses galvanized steel components designed for outdoor use.

Its 275 GSM galvanized mesh and galvanized structural posts are intended to provide long-term corrosion resistance.

The C5DF is designed around an expected 20+ year environmental service life under appropriate conditions, although actual lifespan depends on the installation environment and maintenance.

Factors that can influence service life include:

• Coastal exposure
• Industrial pollution
• Soil conditions
• Humidity
• Physical damage
• Scratches or cuts to the coating
• Installation quality
• Contact with corrosive materials

No outdoor steel product should be described as completely immune to corrosion. Proper specification and installation help maximize service life.

29. Does the fence require maintenance?

Galvanized chain link fencing generally requires relatively low routine maintenance.

Periodic inspection of the mesh, posts, tension wires, fasteners and gates is recommended.

For PVC-coated fencing, periodic cleaning with clean water and mild detergent can help keep the surface clean. Harsh chemical solvents should be avoided.

Quantity, Measurement and Large Projects

30. How much 5 feet chain link fence do I need?

For a rectangular property, the approximate perimeter can be calculated using:

Perimeter = 2 × (Length + Width)

For example, if a property is 100 feet long and 50 feet wide:

Perimeter = 2 × (100 + 50) = 300 feet

The actual material requirement will depend on:

• Gates
• Corners
• Turns
• Overlaps
• Post spacing
• Ground conditions
• Installation configuration

For large projects, it is better to prepare a complete material schedule rather than estimate mesh alone.

31. Can the C5DF be supplied in large quantities?

Yes.

The system can be supplied for large residential, agricultural, infrastructure and commercial projects.

Bulk requirements can be planned according to the complete perimeter and material schedule.

32. Can the 5 feet domestic fence be supplied for international projects?

Yes.

Fencing India supplies fencing materials for projects in India and international markets.

Large-volume orders can be planned for containerized transportation.

33. How much fencing can fit into a 20-foot container?

The actual loading capacity depends on the exact material configuration, mesh roll dimensions, posts, accessories and packing arrangement.

For bulk or export requirements, the loading plan can be prepared according to the complete bill of materials.

Buying the C5DF

34. What should I check before buying a 5 feet domestic fence?

A low quoted price does not necessarily mean a lower-quality fence. Buyers should compare the actual specifications before comparing prices.

Important points to check include:

1.   Fence height – Confirm that the finished height is actually 5 feet above ground.

2.   Wire diameter – Check whether the mesh uses 2.5 mm wire, 2 mm wire or another specification.

3.   Mesh opening – The C5DF uses a 2.5-inch mesh opening.

4.   Galvanization – Ask whether the mesh is galvanized and what coating level is being supplied.

5.   Post diameter – The C5DF uses 48 mm OD round hollow section posts.

6.   Post thickness – The standard post wall thickness is 2.0 mm.

7.   Post spacing – The standard C5DF arrangement uses approximately 10 feet center-to-center spacing.

8.   Tension system – Check whether tension wires, tension bars, bands and fixing components are included.

9.   Corner support – Corners and turns should receive suitable strain and support arrangements.

10.                   Fasteners – Ask what type of fasteners and clips are included.

Comparing these details gives a much more meaningful picture of the actual value of a fencing quotation.

35. What information do I need to provide for a quotation?

To prepare a quotation, provide:

• Total fencing length
• Location of the project
• Number and size of gates
• Required mesh specification
• Preferred galvanization
• Installation requirement

For larger projects, the complete perimeter and site configuration can be used to prepare an appropriate material schedule.

36. Why choose the CHAKRA 5 feet domestic fence?

The CHAKRA C5DF is designed around a balance between quality, durability, security, appearance and economy.

Its standard configuration includes:

• 5 feet finished fence height
• 2.5-inch chain link mesh
• 2.5 mm / 12 gauge mesh wire
• 275 GSM galvanized mesh
• 4 mm high-tensile tension wire
• 48 mm OD round galvanized posts
• 2 mm post thickness
• Approximately 10 feet post spacing
• Galvanized strain and corner posts
• 33 mm OD galvanized strut posts
• 32 × 5 mm tension bars
• 25 × 3 mm center and corner bands
• SS304 stainless steel fastening components
• Optional gate arrangement
• Suitable for domestic, agricultural and property-boundary applications

The result is a fencing system that combines the openness of chain link fencing with a more substantial 5-foot boundary profile.

“As a poultry farmer, keeping stray animals away from my farm is critical, even though my birds stay securely in poultry cages. I was also facing frequent boundary encroachment issues from neighbors, so I decided to invest in a fence. While in the city sourcing poultry equipment, I learned about your commercial fencing business and requested a quote. Your pricing was much more economical than any local quotes I had taken, and the breakdown of the materials was incredibly clear. The delivery was perfectly on time, and the installation team arrived without any hassle. I was highly impressed by their specialized installation technique—the entire chain link run was pulled perfectly tight, with zero sagging. They completed the entire project in just 20 days instead of the 30 days I expected. The finished boundary looks exactly like the product drawings, creating a beautiful fence that adds real value to my property while keeping wandering animals completely out.”- Kishore, Amaravathi, MH
