8 feet Monkey Proof

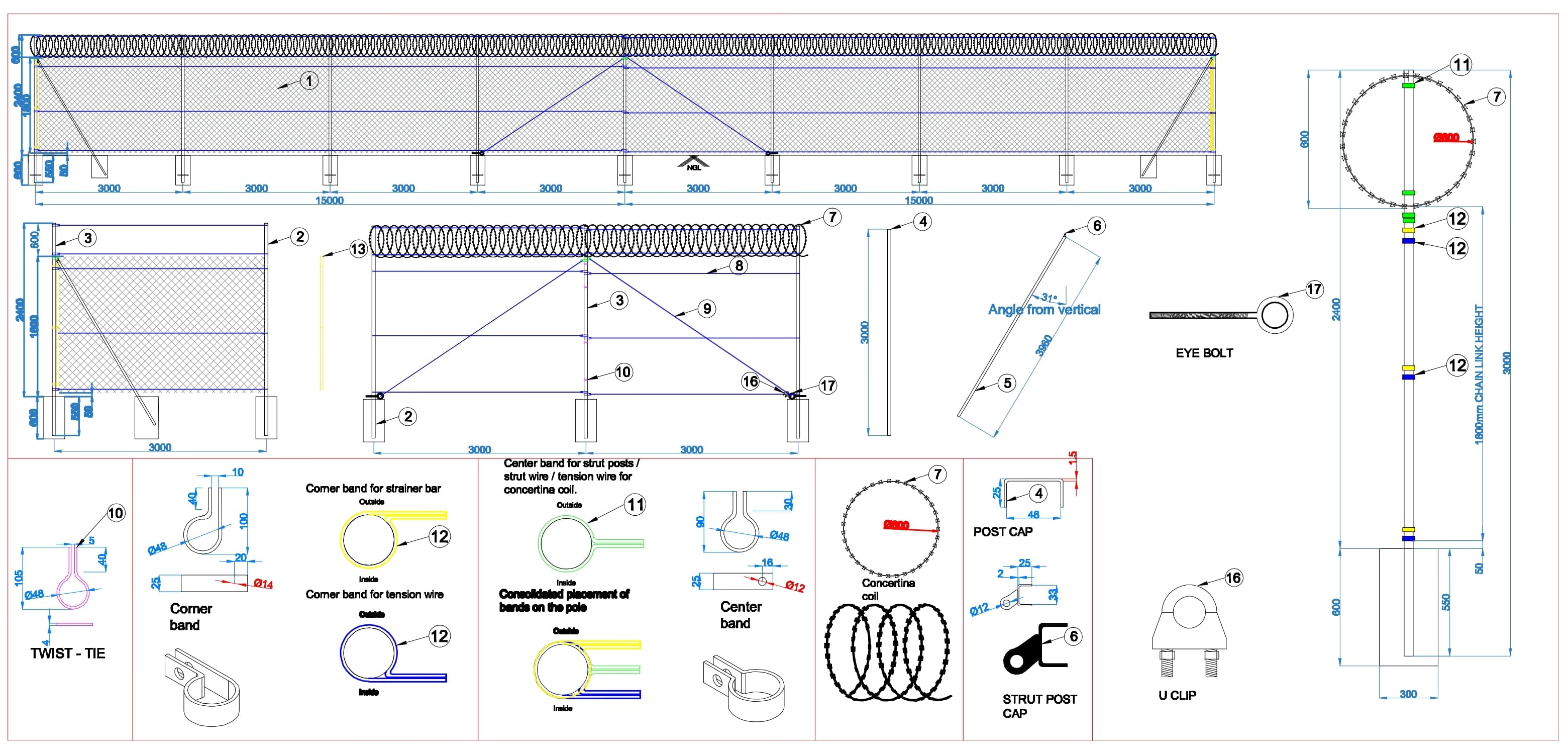

Material: 8 feet / 2.4 meters height fence

Intermediate post

48OD CHS (48mm Circular Hollow Section), 2.0mm thickness, 10ft full length, 2 feet grouted, 8 feet above ground (6 ft chain link hold + 2 ft barbed wire hold), 10feet c/c, Hot dip galvanized to minimum 90 microns.

Strain/corner post

48OD CHS (48mm Circular Hollow Section), 2.0mm thickness, 10ft full length, 2 feet grouted, 8 feet above ground (6 ft chain link hold + 2 ft barbed wire hold), 10feet c/c, Hot dip galvanized to minimum 90 microns.

Post caps

48ID female top. 1.6mm thickness. Pre-galvanized G.I profile

Strut post

33OD CHS (33mm OD Circular Hollow Section), 2.0mm thickness, 11.5 feet full length, 2.8 feet incline grouted @36⁰, 8.5 feet inclined support to straining post, Hot dip galvanized to a minimum of 90 microns.

Strut post caps

33ID female top. 2.0mm thickness with welded lug plate. Hot dip galvanized to 90 microns
Chain link mesh

Chain link: 3”, 3mm wire diameter, 275 GSM, 6 feet height.

Concertina coil

600mm dia., 2.5mm core wire, 275 GSM, 0.5mm blade thickness, 12mm spacing, 18mm blade width.

Tension wire

4mm high tensile wire (HT) with 275 GSM. 5 lines through periphery.

Twist ties

Twist ties: 4mm wire dia., Pre-shaped fence ties, 275 GSM

Gate

48OD frame, 2.0mm thickness, 15ft span, 8ft height, swing type, double leaf, chain link mesh infill(as required), with heavy-duty steel gate posts, MS hinges(welded or bolted) and standard latch with padlock provision and applicable material.

Tension bar

32x5mm bar, 8ft height, 3 XM10 apertures, hot dip galvanized to 90 microns

Center bands

25x3mm bar, 250mm pre-stressed profile, hot dip galvanized to 90 microns

Corner bands

25x3mm bar, 300mm pre-stressed profile, hot dip galvanized to 90 microns

Eye bolt

8mm, 3” length, special purposed with eye, stainless steel SS304

U clips

5mm (stainless steel SS304)

O fasteners

M12 bolt ( 40mm special fastener for tightening, stainless steel SS304 + nut)

Fastener

M10 bolt (40mm fastener, stainless steel)

Product Overview & Performance Rating

Every fencing system is designed with a specific purpose in mind. This Agricultural Chain Link Fence with Concertina Wire has been developed to provide dependable perimeter protection for orchards, plantations, farms, and other agricultural properties where security, durability, and long-term value are essential. The ratings below are based on the fence's construction, materials, expected performance, and suitability for agricultural applications.

Quality 6/7

Built using quality galvanized steel components, this fencing system delivers reliable performance in demanding outdoor environments. The chain link mesh is properly tensioned, corner posts are reinforced with galvanized struts, and every fifth straining post is strengthened with a galvanized stay wire to maintain fence stability over long distances. The straight concertina holding arrangement further enhances the structural integrity of the fence. The rating reflects a fencing system that is engineered for strength, durability, and dependable long-term performance.

Service Life 6/7

The longevity of any chain link fence depends largely on the quality of its galvanization. When manufactured using 275 GSM galvanized wire, this fencing system is expected to provide no less than 20 years of service under normal environmental conditions. The heavy zinc coating protects the steel against corrosion, reducing maintenance requirements and ensuring excellent long-term value. For customers seeking a fencing solution that performs reliably for decades, this system offers outstanding durability.

Security 6/7

Security is one of the strongest features of this fencing system. The combination of galvanized chain link mesh and continuous concertina wire creates a highly effective barrier against unauthorized entry. It also helps arrest monkeys that frequently damage fruit orchards and agricultural plantations. Reinforced corner assemblies, correctly tensioned fencing, and periodic straining supports ensure that the fence maintains its strength and effectiveness throughout its service life, making it suitable for both agricultural and commercial applications.

Economy 5/7

For large agricultural boundaries, this fencing system offers an excellent balance between cost and performance. It is considerably more economical than constructing a compound wall while providing dependable perimeter security with minimal maintenance. Although the addition of concertina wire increases the initial investment, it significantly improves security and long-term protection, making it a worthwhile choice for orchards, farms, and plantations requiring reliable perimeter fencing.

Beauty 6/7

Designed with practicality in mind, this fencing system also delivers a neat and professional appearance. The uniformly tensioned chain link mesh, straight fence alignment, and carefully installed concertina wire create a clean, organised perimeter that complements agricultural landscapes. Unlike solid walls, the open mesh design preserves visibility, allows natural airflow, and blends seamlessly with orchards and plantations while maintaining an attractive and well-maintained appearance.

1. Why should I choose chain link fencing for my agricultural land?

Chain link fencing is one of the most economical and durable fencing solutions for farms, orchards, plantations, and agricultural properties. It provides excellent visibility, requires minimal maintenance, and can secure large areas without the high cost of compound walls. When combined with concertina wire, it offers enhanced protection against unauthorized entry and animal intrusion.

2. Can this fence prevent monkeys from entering my orchard?

Yes. While no fence can guarantee complete prevention against determined wildlife, a properly installed chain link fence with concertina wire significantly discourages monkeys from entering orchards. It acts as an effective physical barrier, reducing crop damage and protecting fruit-bearing plantations.

3. Why is concertina wire installed above the chain link fence?

Concertina wire provides an additional layer of security by making the fence extremely difficult to climb. It protects the property against unauthorized entry while increasing the overall effectiveness of the perimeter security system.

4. Why are only the corner posts reinforced with struts?

The greatest tension in a chain link fence is generated at the corners and end posts. Strut posts transfer this load to the ground, keeping the fence properly tensioned and structurally stable. Reinforcing every post is unnecessary and would only increase the project cost without adding significant benefits.

5. Why is every fifth straining post reinforced?

Over long fence runs, the tension created by the stretched chain link fabric needs to be controlled. Reinforcing every fifth straining post helps maintain proper fence alignment and tension while providing an economical balance between strength and material usage.

6. How long does a galvanized chain link fence last?

The service life of a chain link fence depends primarily on the quality of the galvanization. At Fencing India, we use 275 GSM galvanized wire for applications where maximum durability is required. Under normal environmental conditions, a fence manufactured using 275 GSM galvanized wire is expected to last no less than 20 years, provided it is installed correctly and not subjected to abnormal mechanical damage.

The heavy zinc coating acts as a protective barrier against corrosion, making the fence highly resistant to rust and weathering. This makes 275 GSM galvanized chain link fencing an excellent long-term investment for orchards, farms, industrial premises, solar power plants, and other outdoor applications where durability is essential.

7. Will the fence rust?

Galvanized steel is protected with a zinc coating that greatly reduces the possibility of rust. With quality galvanization and proper installation, the fence performs well under normal outdoor weather conditions.

8. Is chain link fencing suitable for large agricultural projects?

Yes. Chain link fencing is widely used for large farms, plantations, orchards, solar power plants, industrial premises, and government land because it is economical, durable, and easy to maintain over long distances.

9. Can this fence be installed on uneven land?

Yes. Chain link fencing can be installed on sloping or uneven terrain using appropriate installation techniques that follow the natural contours of the land while maintaining fence strength and appearance.

10. Is a compound wall better than chain link fencing?

The choice depends on the application. Compound walls provide complete privacy but involve substantially higher construction costs. Chain link fencing offers security, visibility, faster installation, and a more economical solution, especially for large agricultural properties.

11. Can I install barbed wire instead of concertina wire?

Yes. Depending on the required level of security and budget, chain link fencing can be topped with either barbed wire or concertina wire. Concertina wire provides a higher level of protection and is generally preferred where enhanced security is required.

12. Does chain link fencing require regular maintenance?

Very little. Periodic inspection of the fence, tightening of any loose components if required, and removal of vegetation growing through the mesh are generally sufficient to keep the fence in good condition.

13. Can damaged sections of the fence be repaired?

Yes. One advantage of chain link fencing is that damaged portions can usually be repaired or replaced without dismantling the entire fence, making maintenance economical.

14. Do you manufacture the fencing materials or only install them?

Fencing India manufactures chain link fencing materials and also undertakes supply and installation projects depending on the customer's requirements. We can provide complete fencing solutions tailored to different applications.

15. How do I choose the right fence height?

The appropriate height depends on the level of security required, the type of property, and the intended application. Our team recommends the most suitable fence height based on site conditions and the customer's security objectives.
